LED modes

PreviousResetting PasswordNextOther app information

Last updated 1 year ago

Was this helpful?

Connected Mode

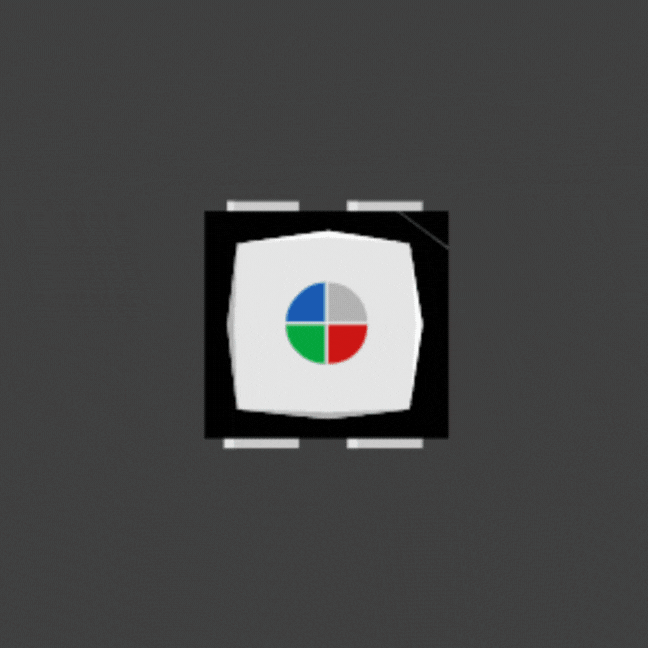

  • Breathing Cyan: The device is successfully connected to the Internet, enabling function calls and code flashing.

Connecting to the Cloud

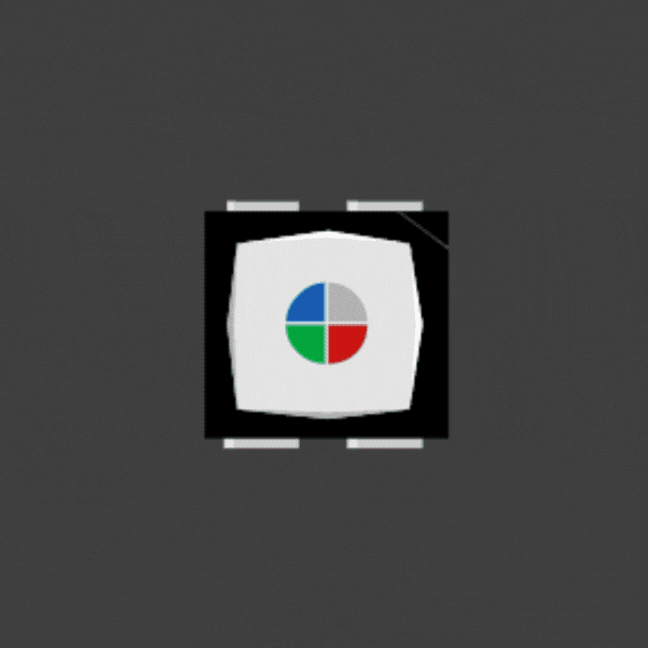

  • Rapidly Blinking Cyan: Signifies the process of cloud connection, usually following a green blink indicating cellular connection attempts.

OTA Firmware Update

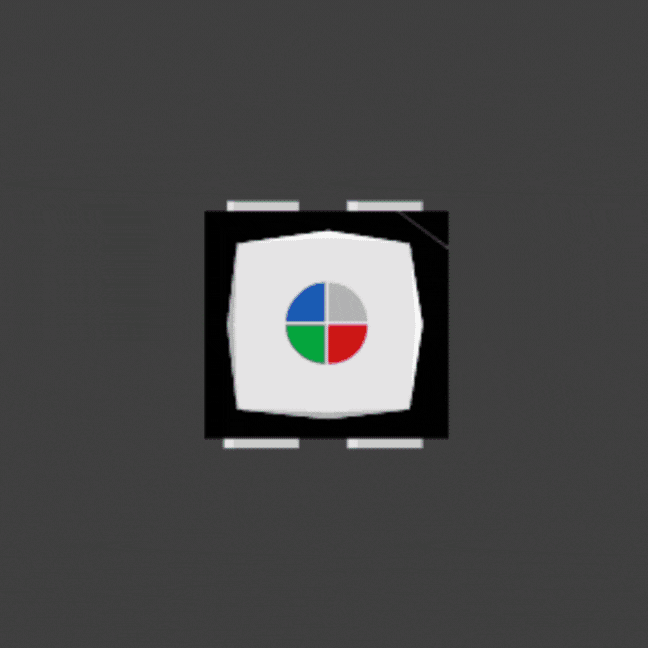

  • Blinking Magenta: Indicates ongoing firmware updates or code flashing. Entering this mode via MODE button during boot signals an impending safe mode for cloud connection without running application firmware.

Looking for Internet

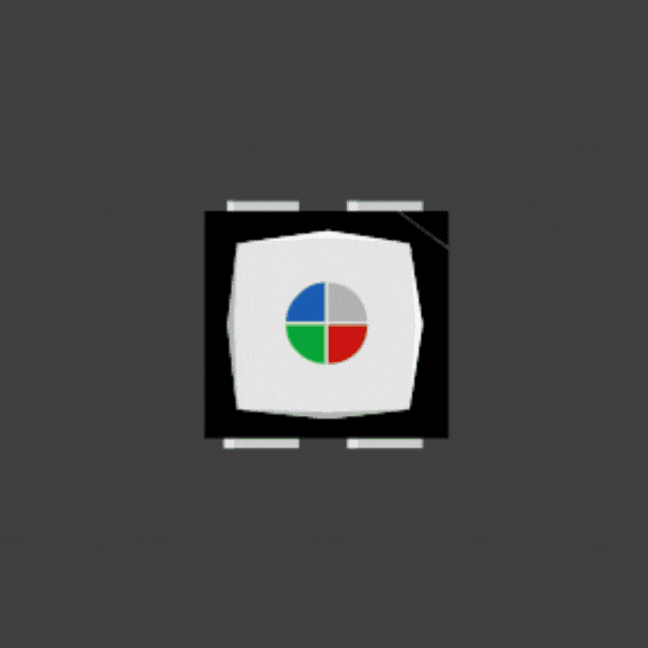

  • Blinking Green: The device is attempting to establish a cellular connection.

Red flash SOS

Is your device blinking red? Oh no!

A pattern of more than 10 red blinks is caused by the firmware crashing.

No status LED

If you power up your device and the status LED never comes on
